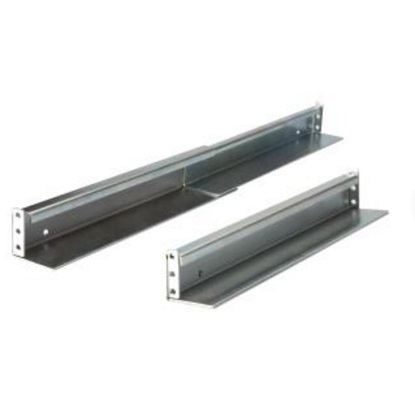

Τύπος: Φυσικό L στήριγμα (Physical L Support)
Συμβατότητα: Κατάλληλο για καμπίνες με βάθος 800mm έως 1000mm
Υλικό: Μεταλλικό, με επιμετάλλωση ψευδαργύρου
Επιμετάλλωση: Ψευδαργυρωμένο (Zinc plated) με πάχος 8-12 μικρά (micron) για προστασία από τη διάβρωση
Βάθος στήριξης: Περίπου 720mm
Κωδικός προϊόντος: ACR.0553
DVR box W580xH550xD160mm 2U 19'' assembly area inside- with DVR fixing Brackets wth bumpers-Double Keyed Slam Latch Lock
Features :
• Welded monoblock body 0.8 mm.
• Door has one lock in standart and can be opened in two different angles: 27° and 90°. Ask for two lock with different cyphers option.
• DVR device to be mounted on inside of the door.
• Adjustable fixation bracket for different DVR devices.
• Ventilation slots provides passive cooling for devices.
• Clamp brackets have rubber isolators to keep the DVR on exact position without damage, during opening and closing the door.
• 12” Screen fixation is possible on rear wall (depends on screen brand and model-please define).
• 5 different cable entries on every direction: top, bottom, left, right and wall.
• 19” 2U mounting bracket for power stripe assembly on inside top.
